Color temperature insulating glass

Color temperature insulating glass is colored optical glass, it is used in shadowless lamp.It is about 4500K color temperature control, and heat resistance is at 200-250 ℃.Color temperature insulating glass is  a not been coated, light is also never change optical materials.

Main apply: medical equipment shadowless lamp.


Color:the color values of standard illumination in A and D65

Refractive index measure up to insulation glass

Type
SG4100
Thickness (mm)
4
A
X
0.439
Y
0.412
Y
88.7
D65
X
0.309
Y
0.332
Y
88.9
Function (color rendering index)
>93%
Color temperature
4200K
Infrared ray insulating
900nmT=2%
Chemical Stability
DA2   DW2
Thermal performance(a*10-7)
59
transition temperature(Tg)
587
Softening temperature(Ts)
656

Type Thickness (mm) 365(mm) 500(mm) 600(mm) 700(mm) 800(mm) 900(mm) 1000(mm)
SG4100 4 84.93 71.49 49.92 34.32 5.86 0.41 0.06

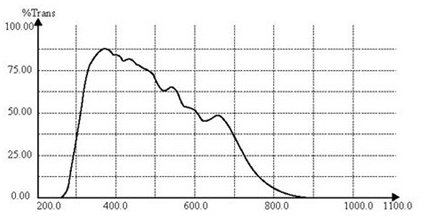

Spectral curve as follows:
